Video Question Answering with Overcoming Spatial and Temporal Redundancy in Feature Extraction

Ⅰ. Introduction

Video question answering (video QA) is a computer vision task to answer a question through semantic reasoning with an input video^[1,2]. In video QA, handling large amounts of both visual and linguist information plays an important role in improving performance. Recent studies use convolutional neural network (CNN) such as VGG^[3] and C3D^[4] networks to extract an appearance feature and a motion feature, respectively. The features are fused with a language feature to answer a question, using a long short-term memory (LSTM)^[5]. Based on the CNN and LSTM models, researchers have introduced attention models to focus on more relevant local regions and video intervals^[6,7,8]. Spatial attention and temporal attention have been proposed to find a region of interest and temporally localize the subject in each frame^[9]–[12]. However, they had limitations to understand global contexts in a video^[13,14]. Later, memory modules were used to keep attended spatial and temporal features^[7,8]. In this manner, a question could be answered after a model examines a whole video. However, it was difficult to focus on a region of interests among many input video frames. Further, inter-domain correlation has been largely ignored without carefully examining key information.

We present two problematic scenarios caused by the inherent nature of a video as shown in Figure 1. “Temporal redundancy” refers to the problem that a model is more likely to learn the frequent motion and reflectively answer the question, ignoring a key action. For example, in Figure 1, the model answers “Cooking” instead of the ground-truth “Standing” when the question “What is a woman who wearing a blue skirt doing?” is given. This is because the model has linked “Woman” and “Cooking” as the most occurring motion in the part of the video. Second, “Spatial redundancy” happens when the model chooses an answer which is primary within all scenes but wrong, where the model has learned dominant appearance unrelated to the question. When the question “What is a woman wearing a blue skirt grabbing?” is given, the video presents the “Onion” in most scenes that are less relevant than the answer “Hands” in each scene. Therefore, video data can be learned with some inherent biases caused by a superficial inter-domain correlation. As a result, the model predicts a wrong answer without carefully looking at any key information.

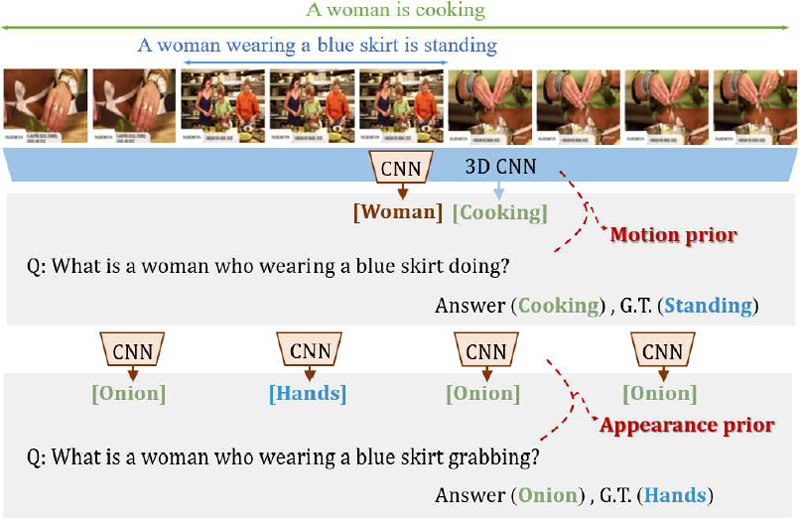

Fig. 1.

Our motivation is presented. Video QA models can suffer two problems in video. A large amount of redundant information of motion and appearance can degrade the performance of a model due to the nature of video and drawbacks of conventional approaches.

This paper is the first attempt to define and address the problems due to the large amount of redundant video data. The performance of a video QA model can be significantly degraded by the nature of video and drawbacks of conventional approaches. Although the previous studies applied attention mechanisms^{[6]–[8],[12]}, the features had disadvantages because of insufficient representation capability to express diverse scenes in a video. Therefore, we develop a novel deep feature extraction to cope with the problem. Our work has several primary contributions as follows:

We propose a deep video QA model to provide more reliable video features although video data presents various characteristics. Motion features are generated from surrounding appearance features to distinguish meaningful temporal changes among other frequent motions in frames.

We develop a MSVD dynamic video QA test dataset. The proposed dataset is used for benchmark tests to measure the different characteristics of videos with various temporal dynamics. The dataset is more difficult to respond by including detailed questions with several scene changes in the video.

Ⅱ. Related Works

Ⅲ. Proposed Method

Figure 2 presents the proposed neural network architecture based on the conventional modules^[2,12,18] colored with gray. The proposed network consists of a motion feature extraction (blue) and a question-to-video attention during feature extraction (red). The attention module takes inputs from the question attention (green) and produces more relevant motion and appearance features denoted by $$ \overline{a}$$ and $$ \overline{m}$$ before encoding by LSTM. The process is designed to effectively remove the spatial and temporal redundancy during feature extraction.

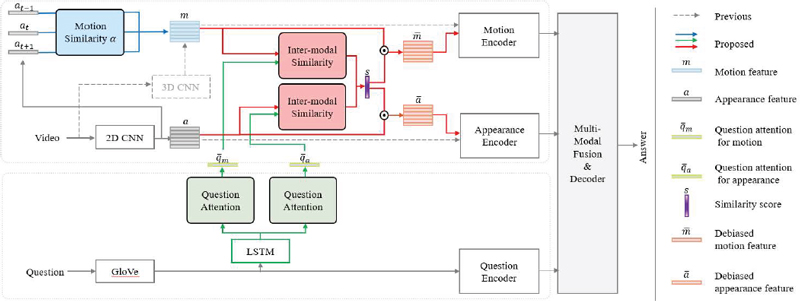

Fig. 2.

A blockdiagram of the proposed video QA network architecture on top of the conventional modules colored with gray. The motion feature extraction replacing the 3D CNN is colored with blue. Question-to-video attention is colored with red. Question attention is colored with green.

2. Question-to-video attended feature

In the proposed method, a_t and m_t are enhanced by measuring the correlation with a given query. To determine the correlation, we propose to use $$ \overline{q_a}$$ and $$ \overline{q_m}$$ that are question attentions for appearance and motion and use question-to-video attention deep module to output attended feature $$ \overline{a_t}$$ and $$ \overline{m_t}$$ given as

$\[ \overline{a_t},\overline{m_t}=A\left(a,m,\overline{q_a},\overline{q_m}\right)\dots \]$

(3)

where A is the deep model to generate the question-to-video attended features. The attention is applied during feature extraction to efficiently capture useful motion and appearance features among spatial and temporal abundant information. We first explain question attention and then the generation process of the proposed features from question-to-video attention. We used a two-layers LSTM^[5] to create motion and appearance query.

Next, an inter-modal similarity score is calculated to consider the other modality when training an unimodal feature. We first calculate the appearance and motion similarity scores s_a and s_m. The scores are obtained from the video features a and m and the attention $$ \overline{q_a}$$ and $$ \overline{q_m}$$ as

$\[ s_a=softmax\left(\overline{q_a}{W}_{s}a\right)\dots \]$

(4)

and

$\[ s_m=softmax\left(\overline{q_m}{W}_{s}m\right)\dots \]$

(5)

where W_s is a weight similarity matrix^[27] with learnable parameters, and we use the SoftMax function to compute the probability. The scores are end-to-end learnable without ground-truth. We note that the calculation of the similarity can give a similar effect to an intermediate fusion^[28]. Next, an inter-modal similarity score s to have more intermodal synchronization is calculated as

$\[ s=\frac{s_a+s_m}{2}\dots \]$

(6)

Because s plays a role in highlighting the spatial and temporal regions associated with a question, it can activate different areas for each question even for the same video. For example, for the first question in Figure 3, the frames around t = 1 and N are more attended due to more relevant objects such as “man”. Then, we multiply the similarity scores to the video features a_t and m_t to extract the enhanced feature $$ \overline{a}$$ and $$ \overline{m}$$ as the dot products with s.

Fig. 3.

Visualization of inter-modal similarity score s. The region colored with blue stands for the strong attention

IV. Experimental Results

1. MSVD and MSVD Dynamic QA Dataset

The original MSVD QA dataset^[23] includes 520 video clips, in which the majority of the videos display homogeneous motion. There are 71.8 % of videos with noticeable temporal changes less than four. That is, original MSVD QA dataset is not suitable for evaluating video QA models, when the models are supposed to manage video scenes with complicated temporal dynamics and diverse questions. So, we carefully sampled 30 videos that contain various motion and content dynamics from original set. The minimum number of scene changes in MSVD dynamic QA is 3, and the average scene change number is around 10.4. We also added 570 open-ended questions to the MSVD dynamic QA dataset. The questions ask more concrete answers about video scenes. Some previous methods may fail to provide good performance if they have not carefully examined both motion and appearance with the question or focused only the narrow parts of the video. Some of the questions are shown in Figure 4. The original question asks only the part of the video related with “A woman is rowing in a boat”. However, the modified question sets have more verities. For example, We add questions about two men who appear in the middle of the video scene. To accurately answer the question, a model needs to capture both the intermediate motion and appearance. Further, a model should not be confused by the dominant motion, i.e. rowing. In addition, the last question asks “What are two girls doing?” where the two girls appear in the last frames. To answer the question, a model needs to address spatial redundancy.

Fig. 4.

Samples in (a) the original MSVD QA dataset and (b) MSVD dynamic QA dataset

3. Performance analysis

We verified the performance of proposed algorithms in the MSVD dynamic QA dataset. AMU^[1], CoMem^[7], and HME^[8] are used for the baseline models, because the models use attention mechanism. Because the dataset has open-ended questions, we use the top-1 accuracy (Acc@1), top-10 accuracy (Acc@10), and the WuPalmer Similarity (WUPS) score, which measures how the predicted answer is semantically close to the actual answer. WUPS@0.0 and WUPS@0.9 are used with the different thresholds in the measurement^[24].

As shown in Table 1, the proposed method provides consistently improved performance over the baseline models. In Acc@1, we observe the performance difference by the proposed method around 3.6%, 5.4%, and 5.5% on AMU, CoMem, and HME, respectively. In Acc@10, the gaps become larger on the average. In particular, for HME, the proposed method improves the accuracy around 16.6% over HME only. We also report WUPS scores. As WUPS@0.9 requires more precise answer than WUPS@0.0, the similar behaviors are observed. The average difference in WUPS@0.0 and in WUPS@0.9 are around 2.6% and 6.7%, respectively. We also conduct the quantitative performance analysis on the original MSVD QA dataset to see how the performance changes with different video characteristics. HME is used as the baseline model to measure Acc@1. Table 2 shows experimental results in the original MSVD dataset. HME+Ours provides the accuracy around 34.8%, which improves around 1.1% over the original HME. It also outperforms LGCN^[30] in the accuracy. It is noted that the difference was larger around 5.5% in the dynamic set. This result implies that the proposed network provides more accurate outputs although input videos contain more scene changes.

Table 1.

Experimental results on the MSVD dynamic QA dataset

Table 2.

Experimental results on the MSVD QA dataset

4. Ablation tests

4.1 Motion feature

Our network has replaced the conventional motion feature obtained from 3D CNN. In the ablation test, we compare the performance when using the proposed motion feature and the C3D feature in the MSVD dynamic QA dataset and the original dataset. As shown in Table 3, the proposed motion feature provides some improvements around 0.9% in the original set. The performance difference is significant in the dynamic set as 5.3%. We observe the proposed motion feature is more effective to the dynamic videos.

Table 3.

Ablation study for video features

4.2 Question-to-Attention Module

Table 4 shows the performance comparisons between the original video features a_t and m_t and question-attended video features $$ \overline{a_t}$$ and $$ \overline{m_t}$$. The attended features provides better performance both in the MSVD QA and MSVD dynamic QA datasets. In particular, the proposed video features significantly improve the performance around 6.8% in MSVD dynamic QA dataset.

Table 4.

Ablation study for a question-to-attention module

4.3 Loss function

Since we used two cost functions in Eq. (7), we turn on or off the L₂ cost function to see the performance difference. As shown in Table 5, we observe some improvements around 2.7% in the dynamic set while there has been only slight performance improvement in MSVD QA. This experimental results imply that the regularization enables the model to have more restrictions to select key video frames in the dynamic set.

Table 5.

Ablation study for a loss function

V. Conclusion

In this paper, we first defined and addressed two major intrinsic problems in video data, which are spatial redundancy and temporal redundancy, and attempted to solve the problems. The proposed network consisted of a novel motion feature extraction replacing 3D CNN and question-to-video attention during to use more reliable features. The motion feature was generated by adjacent appearance features. Unlike 3D CNN, the motion feature could represent the local motion synchronized more to the current appearance. The question-to-video attention modules generated attended motion and appearance features, and they were efficiently used for highlighting more relevant regions about the question. We also created a new setting named MSVD dynamic QA dataset to have more dynamic scenes. Experimental results showed that the proposed method outperformed the conventional methods. In the future works, we will create a larger number of QA samples so that the video QA models can be trained and tested with the samples.

Acknowledgments

This research was supported by the NRF grant funded by MSIT (No. NRF-2022R1A2C4002052)
